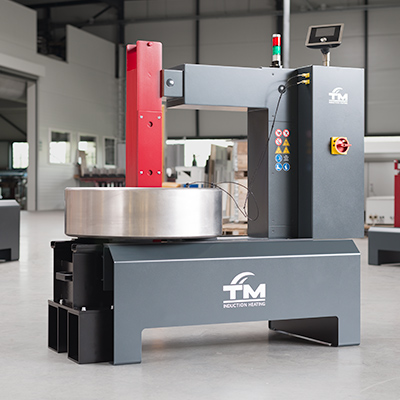

    SURETHERM PRO 3X

    High-capacity PRO induction heater for industrial bearings up to 800 kg / 1,764 lbs.

    SURETHERM PRO 3X

    Product Description

    The following yokes are included with SURETHERM PRO 3X: 100 × 100. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.

    Key Specifications

    Voltage: 400 – 480 – 575 Vac
    Frequency: 50 / 60 Hz
    Max. current: 63 A
    Weight: 280 kg / 617 lbs
    Operating Area (W×H): 435 × 495 mm / 17.13 × 19.49"
    Footprint (L×B): 1080 × 500 mm / 42.52 × 19.69"
    Workpiece — Min. bore diameter: ø 40 mm / ø 1.57"
    Workpiece — Max. outer diameter: ø 1500 mm / ø 59.06"
    Workpiece — Max. width: 485 mm / 19.09"
    Workpiece — Max. weight: 800 kg / 1764 lbs

    Downloads

    Download User Manual Download Datasheet
