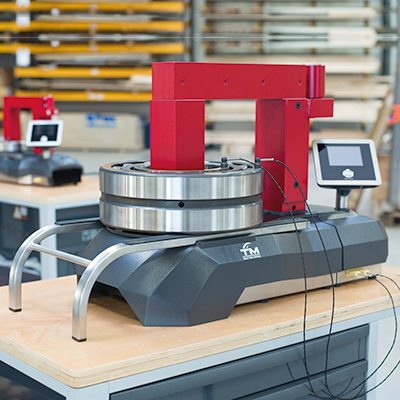

    SURETHERM 30X

    The most complete heater we've ever built — touchscreen interface, ergonomic pivoting yokes and two-sensor heating.

    SURETHERM 30X

    Product Description

    Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete heater we've ever built. Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm (840 mm when used with extension yokes).

    The following yokes are included with SURETHERM 30X: 70 × 70. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 500 mm are included as well.

    Key Specifications

    Voltage: 400 – 575 Vac
    Frequency: 50 / 60 Hz
    Max. current: 20 A
    Weight: 85 kg / 187 lbs
    Operating Area (W×H): 210 × 215 mm / 8.27 × 8.47"
    Footprint (L×B): 695 × 330 mm / 27.4 × 13"
    Workpiece — Min. bore diameter: ø 30 mm / ø 1.20"
    Workpiece — Max. outer diameter: ø 600 mm / ø 23.60"
    Workpiece — Max. width: 210 mm / 8.27"
    Workpiece — Max. weight: 200 kg / 440 lbs

    Downloads

    Download User Manual Download Datasheet
