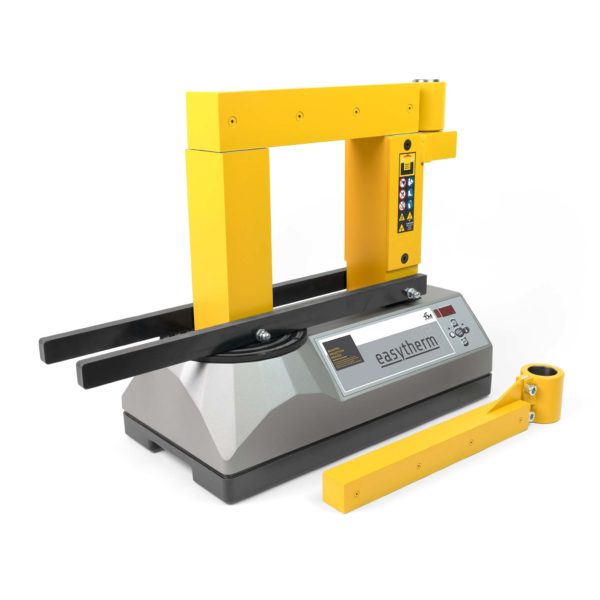

    EASYTHERM 15

    Powerful and reliable induction heater for larger and heavier bearings in industrial environments.

    EASYTHERM 15

    Product Description

    For heating larger and heavier bearings with a max. mass of 150 kg and max. OD ø 490 mm, the EASYTHERM 15 is a powerful and reliable tool. The ET15 is made for very intensive use in industrial production or service/repair environments. In addition to Temperature Mode, heating in Time Mode is available on our larger EASYTHERM induction heaters (ET3.5, ET15, ET30).

    The following yokes are included with EASYTHERM 15: 40 × 38, 70 × 70. Additional yoke sizes are listed in our Datasheet. A magnetic temperature sensor with a length of 1000 mm is included as well.

    Key Specifications

    Voltage: 400 / 460 V
    Frequency: 50 / 60 Hz
    Max. current: 20 A
    Weight excl. yoke(s): 62 kg
    Footprint: 505 × 260 mm
    Max. Temperature: 240 °C / 464 °F

    Downloads

    Download Manual Download Datasheet
